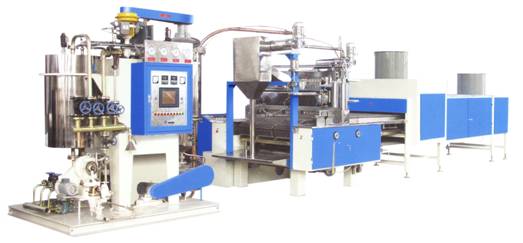

GD系列連續真空薄膜熬糖自動澆鑄成型生產線
Model GD Vacuum film sugar cooking continuous &
pour shaping auto-producing line.
GD-450 Vacuum film sugar cooking continuous
pour shaping auto-producing line is the advanced confectionery machine at the
present time It gathers machine and electric all in one this machine have the
features of compact structure and highly automatic, With high output and good
production efficiency it can produce not only crystal candy, center-fill candy
but also bi-color and bi-flavor candy, stripe candy and coffee candy The
produced candy which made from this machine have transparent can’t smooth
surface and good taste. Both domestic and foreign customers deep welcome this
machine.
GD-系列450連續真空薄膜熬糖自動澆鑄成型生產線 Model GD Vacuum film sugar cooking continuous & pour shaping
auto-producing line. |
|||
SPECIFICATION 一般規格: |
GD-150 |
GD-300 |
GD-450 |
CAPACITY:
機械產能kg/hr |
150 |
300 |
450 |
CANDY
DIMENSIONS: 糖型重量/尺寸 |
6g
MAX. |
6g
MAX. |
6g
MAX. |
STEAM
CONSUPTION:: OPERATION蒸氣使用量 |
200
kg/h |
260 kg/hr. |
340 kg/hr. |
STEAM
PRESSURE: 蒸氣壓力 |
6kgf/c㎡ |
6kgf/c㎡ |
|
COMPRESSED AIR CONSUMPTION:NB 壓縮空氣用量: M^3 (6kgf/c㎡) |
0.2M^3
/ 6kgf/c㎡ |
0.25M^3
/ 6kgf/c㎡ |
0.3M^3
/ 6kgf/c㎡ |
POWER總 功 率: (KW) |
24kw |
28kw |
34kw |
DIMENSIONS機械按裝平面尺寸(CM): |
1300x250x275 |
1300x300x275 |
130x350x275 |
Page:1
TOTAL: 2 Page
:
加裝選購配件即可生產兩色,夾心,棒棒糖 噴花糖果。
Products
by GD-450
(Stripe candy, Coffee candy, Center filling candy. Lollipop)
GD-450
Products 只要加購下列配件即可生產如圖示之產品。 If
you buy below optional components, you can products any one
|

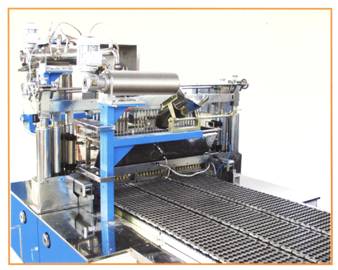

GD-450 Filling Area system GD-450充填區示意圖 |
加裝選購配件即可生產兩色,夾心,棒棒糖 噴花糖果。
Products
by GD-450
(Stripe candy, Coffee candy, Center filling candy. Lollipop)

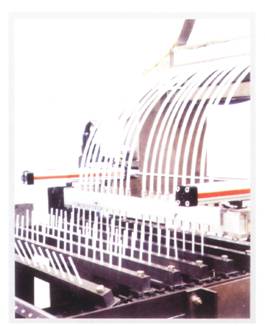

Lollipop forming bar equipment GD-300 only. 充填插棒設備圖(僅適用GD-300) |
GD-450 Products 只要加購下列選購配件設備即可生產如圖示之產品。 If you buy below optional components, you can products any one
(Lollipop) (Stripe candy,
two colors Center filling candy.) |
Page:2
TOTAL: 2 Page
